Huida HD818 Auto-Steer System
Flagship large-screen auto-steer system — 14″ Full HD terminal, RTK precision, electric steering. ISOBUS & 360° surround-view available as optional upgrades.
Send us a message through the contact form and our team will get back to you about pricing, delivery, training and setup.
Details & specifications
The flagship large-screen system — a 14″ Full HD terminal with an electric steering motor and dual-camera monitoring, built for growers running larger, more complex operations. ISOBUS implement connectivity and 360° surround-view are available as optional upgrades.
| Display | 14″ Full HD (1920×1080), ultra-narrow bezel, IP67 |
| Processor | Cortex-A73 + Cortex-A53, 8-Core, 8GB LPDDR4 + 64GB eMMC |
| Steering | Electric steering motor — plug-and-play, no hydraulic retrofit |
| Positioning Accuracy | RTK: 8mm+1ppm (RMS) |
| Positioning Signals | Radio RTK, Ntrip, SBAS/B2b-PPP/Galileo-HAS, optional Global L-Band |
| Cameras | Rear camera standard — dual-camera 360° surround-view available as an optional upgrade |
| Speed Range | 0.1–25 km/h |
The HD818 Auto Steering System is Vector AGR’s cutting-edge platform, engineered for the future of large-scale and smart agriculture. It integrates GNSS high-precision positioning, vision-based navigation, and implement guidance into a seamless workflow, delivering end-to-end precision from field operations to full farm management — an open, scalable platform for current and future smart-farming needs.
-

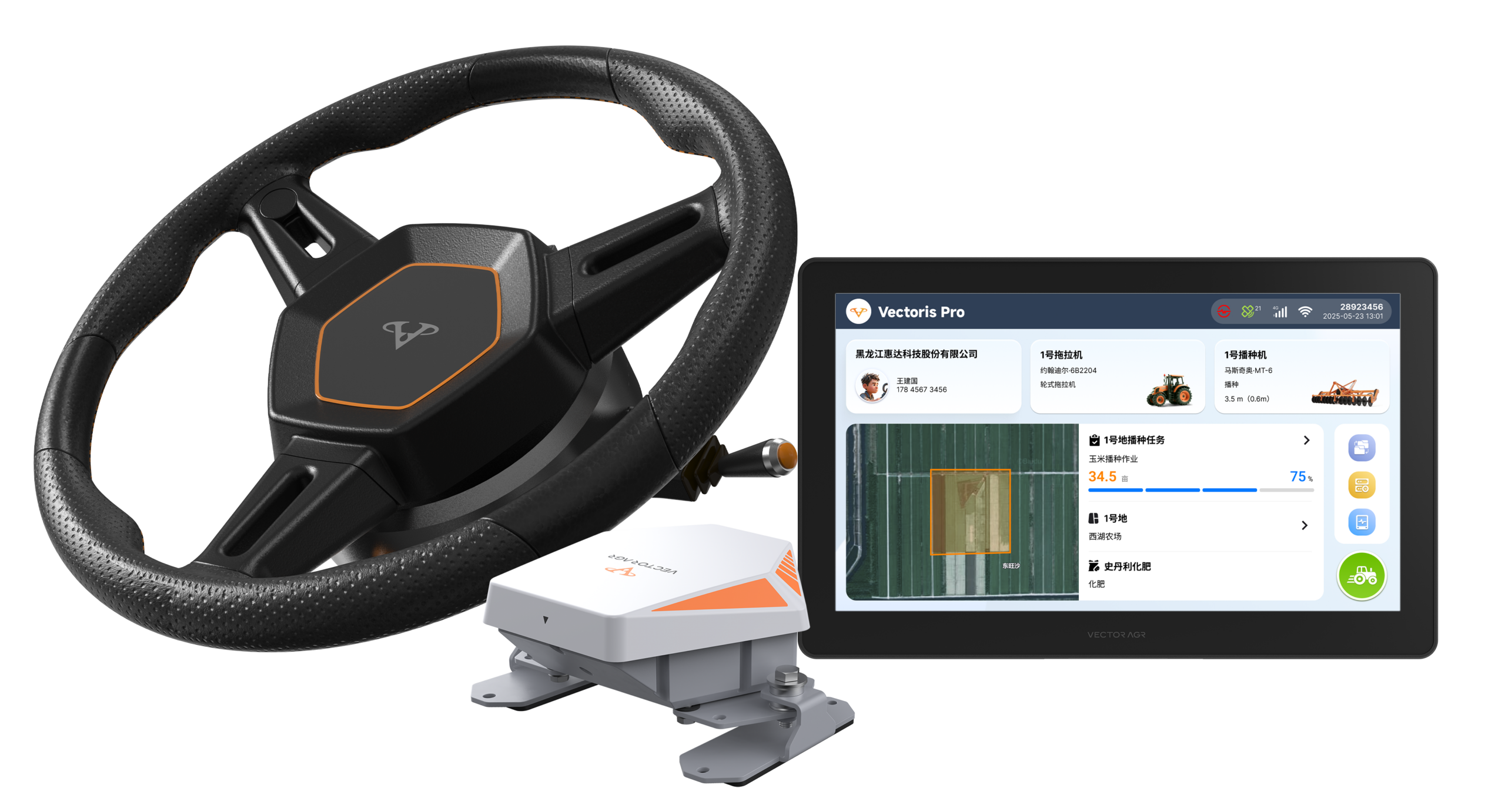

114″ Display Terminal
-
2GNSS Receiver
-
3Electric Steering Motor
-
4Rear Camera
Multi-Function Joystick · 360° Surround View (upgrade from standard rear camera) · ISOBUS implement connectivity · Land Levelling System · Visual Guidance · Smart Spraying System — available to add to a standard HD818 install, ask us for pricing.
Operates within a speed range of 0.1–25 km/h, adaptable to various brands and models of tractors, harvesters and self-propelled sprayers. Supports front wheel, rear wheel, articulated and tracked steering types.
Equipped with the new Vectoris Pro navigation control software, paired with a 14-inch ultra-large display terminal, for smooth performance and easy day-to-day operation.
Stay connected all day long with support for Radio, Ntrip, Galileo-HAS, B2b-PPP, L-Band, and other differential signals.
Enables seamless data synchronisation and transmission with the HD Digital Agriculture Platform and other Vector AGR equipment.
Easily integrate smart tools like variable-rate sprayers and land levelling systems — reduce hardware costs and free up cabin space.
Supports ISOBUS, NMEA-0183, NMEA-2000, Radar Output and Pulse Output, ensuring adaptability across implements and field scenarios.
| Input Voltage | 9–36V DC |
| Processor | Cortex-A73 + Cortex-A53, 8-Core |
| Storage | 8 GB LPDDR4 + 64 GB eMMC |
| Operating System | Android 14.0 |
| Wi-Fi | 2.4G + 5G, IEEE 802.11 a/b/g/n/ac |
| GSM | Global 4G |
| Bluetooth | BT5.0 (BR/EDR + BLE) |
| Camera | 720P ×2 |
| Resolution | 1920×1080 |
| Brightness | 800 nits |
| Touch Screen | Capacitive, 10 Points Touch |
| Dimensions | L 350.5 × W 220 × D 32.5mm |
| Weight | 2 kg |
| Hard Buttons | Power Button Only |
| Speaker | Integrated Speaker ×2 |
| Ingress Protection | IP67 |
| Operating Temp. | -20°C ~ +70°C |
| Storage Temp. | -30°C ~ +80°C |
| Input Voltage | 9.6–14.4V DC |
| Dimensions | L 182.8 × W 175 × D 71mm |
| Weight | 0.8 kg |
| Ingress Protection | IP67 |
| Frequency Range | 410–470 MHz |
| Channel Spacing | 25 KHz |
| Protocol | TRIMATLK, TRANSEOT, TRIMMARK3 |
| Satellites Tracking | GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, IRNSS, L-Band |
| Positioning Accuracy | Single <1.5m · DGNSS <0.4m · RTK 8mm+1ppm (RMS) |
| Operating Temp. | -20°C ~ +70°C |
| Storage Temp. | -40°C ~ +85°C |
| Working Voltage | 9–18V DC |
| Output Torque | 7 N·m (15 N·m max) |
| Nominal Power | 50 W |
| Motor Dimensions | Min φ=181.5mm · Max φ=250mm, H=54mm |
| Ingress Protection | IP65 |
| Max Rotation Speed | 100 RPM |
| Steer Wheel Dimensions | φ=390mm H=60mm |
| Operating Temp. | -25°C ~ +60°C |
| Storage Temp. | -40°C ~ +70°C |
